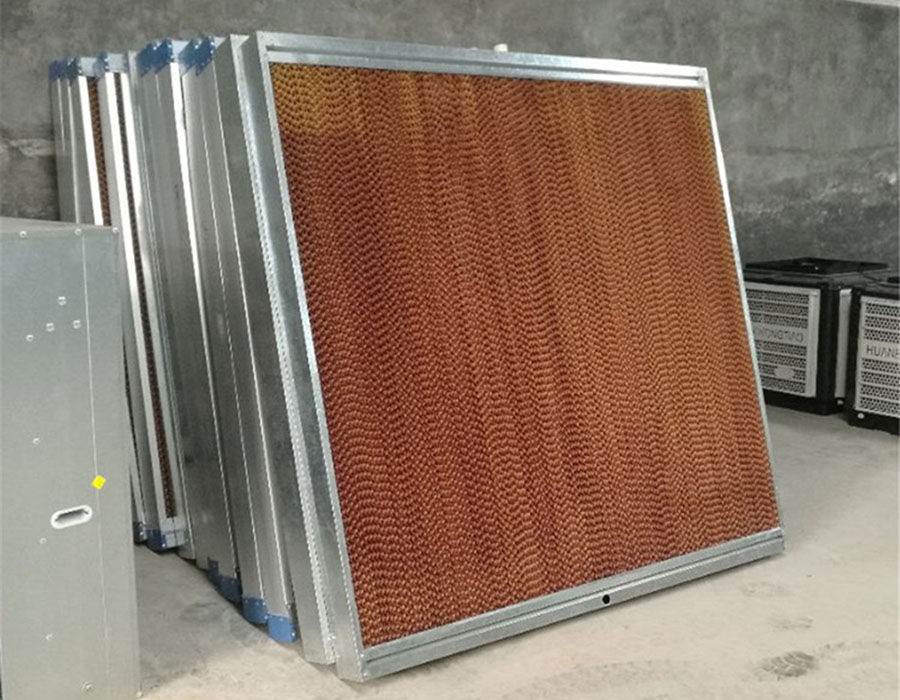

Chicken Farm Using Ventilation Cooling Pads
Paking & Shipping
Friends who are not very familiar with the use of wet curtains are prone to some misunderstandings.They think that with wet curtains and fans, the room is naturally cool and cool, while ignoring that the greenhouse structure and the wet curtain must be perfected to achieve the maximum power of the wet curtain.

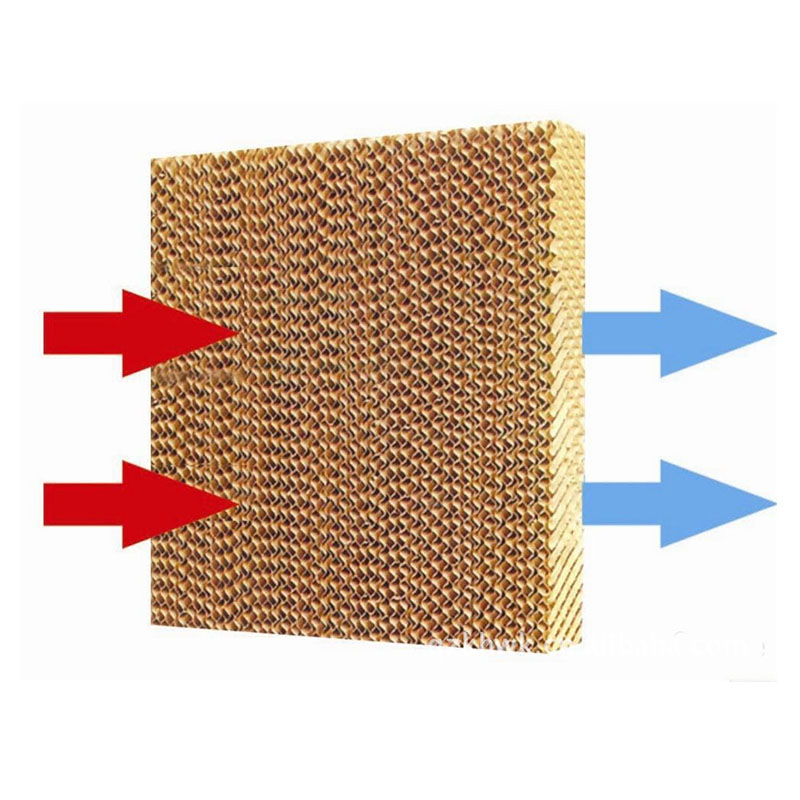

The wet curtain is installed on the other side of the window, and the air passes through the wet curtain to evaporate, and then blown to each corner by the fan, causing the indoor temperature to drop rapidly.
In our impression, some people think that if you have a wet curtain, you don't need a negative pressure fan. In fact, I can tell you that the wet curtain must be used in conjunction with a negative pressure fan, and the negative pressure fan must not be used in conjunction with the wet curtain. This can be done by yourself. Decided, but the cooling effect is not so obvious.

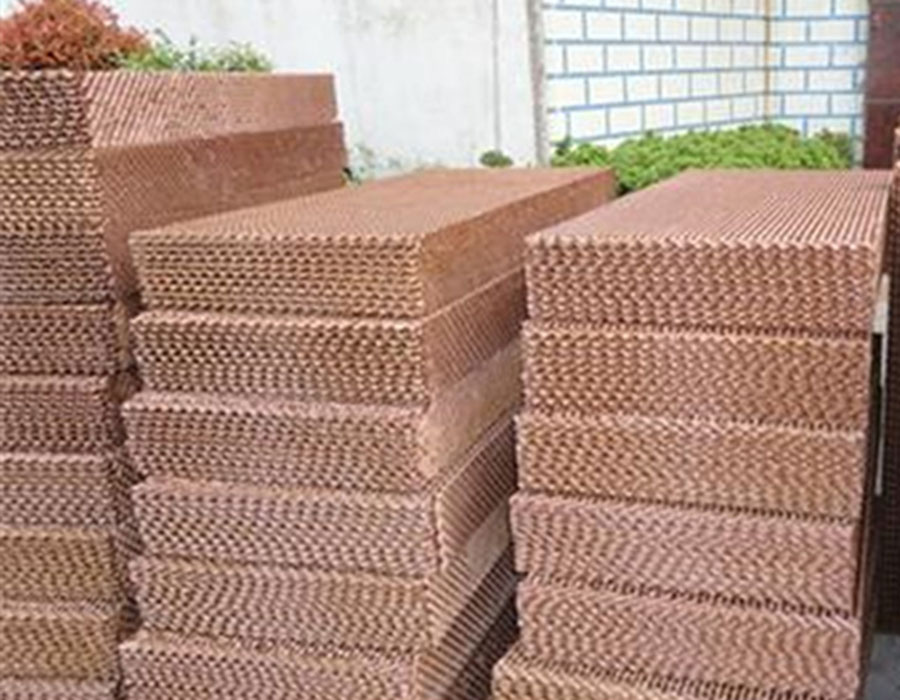

Wet curtain production
Wet curtain structure diagram
Wet curtain series
Wet curtain performance graph
The wet curtain adopts new materials and spatial cross-linking technology, high absorption, high water resistance, mildew resistance, corrosion resistance and long service life
The product contains surfactants, natural absorption and diffusion speed is fast, long-lasting performance: -Diffuse after 4-5 seconds of dripping water, the natural absorption height is 60-70mm/5 minutes, 200mm/1.5 hours, which fully meets the national industry standards.
Strictly produced according to the standard, the quantity of 600mm width wet curtain paper is about 85 sheets: the raw material is imported kraft paper, the basis weight is 100g/m2, the tensile strength is 70N, the thickness is 018-020mm, the water absorption height is 45mm/10min, the moisture content is 5-8%, and the temperature strength is 18N. .
